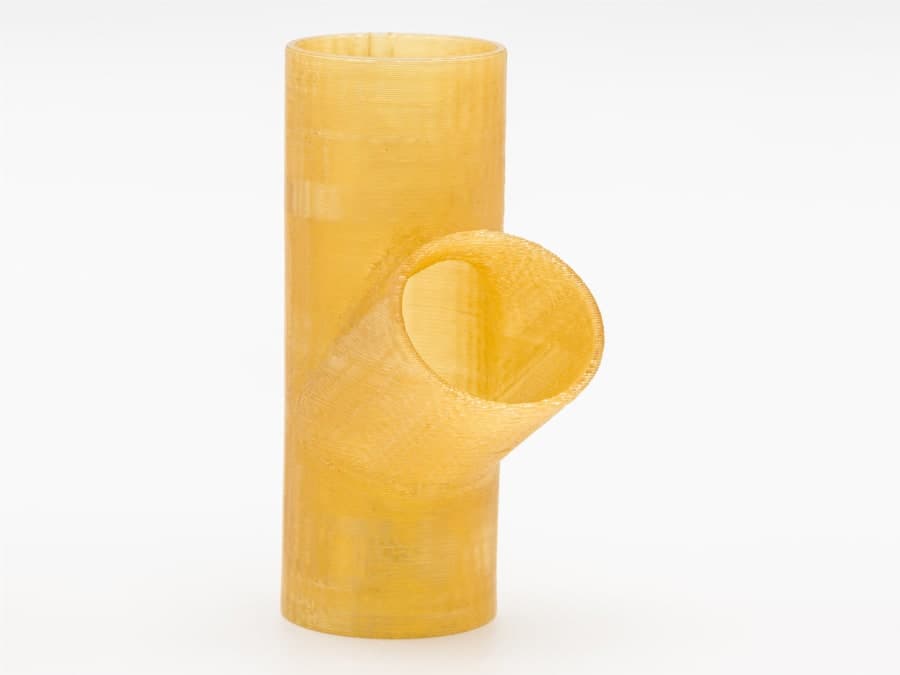

ULTEM 1010

Engineering Plastics

Chemical resistantFunctionalHeat resistantStrong

ULTEM 1010 is one of the strongest FDM thermoplastics. Possessing high heat resistance and thermal stability, it's able to withstand autoclave operations associated with sterilization and composite fabrication tooling. ULTEM 1010 offers the highest tensile strength and the highest chemical and thermal resistance of any FDM thermoplastic.

Print with ULTEM 1010

Mechanical Properties

Tensile strength73–90 MPa

Tensile modulus2500–3427 MPa

Elongation3–3.3 %

Flexural strength110–144 MPa

Flexural modulus2510–3197 MPa

Density1.275 g/cm³

Thermal

Heat deflection at 66 PSI206–216 °C

Heat deflection at 264 PSI211–213 °C

Print Constraints

Maximum build volume

914 × 610 × 914 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.8 mm

Min engraving0.8 mm

Accuracy± 0.3 mm

Warping riskOver_140_mm

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered finish.

Sanded

1 color

Smooth sanded finish.
