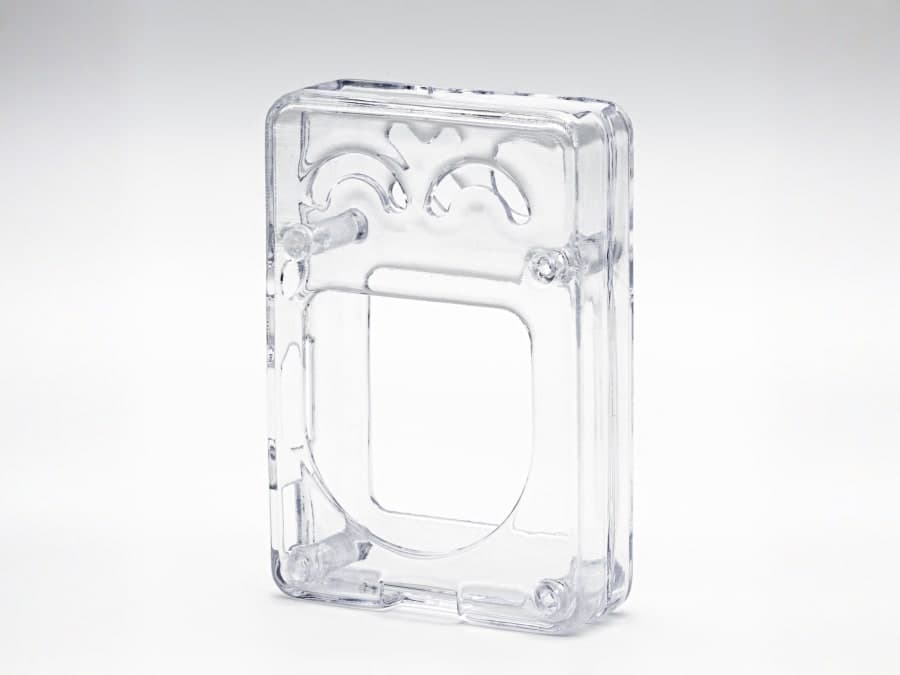

Transparent Resin

Functional Resins

High detailVisualSmoothTransparent

Transparent resin is ideal for objects that are going to be displayed, such as prototypes, models, and figurines. The material is capable of delivering fine details, and a smooth surface with an almost see through texture.

Print with Transparent Resin

Mechanical Properties

Tensile strength43–68 MPa

Tensile modulus1932–3000 MPa

Elongation6–13 %

Flexural strength66–110 MPa

Flexural modulus2100–3200 MPa

Density1.14 g/cm³

Thermal

Heat deflection at 66 PSI45–61 °C

Heat deflection at 264 PSI48–50 °C

Print Constraints

Maximum build volume

800 × 800 × 550 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskModerate

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Transparent Clear

1 color

Transparent resin with a smooth surface.
