SLS PEKK-CF

Composites

Wear resistantChemical resistantFunctionalHeat resistant

PEKK-CF (PolyEtherKetoneKetone with carbon fiber reinforcement) is a high-performance thermoplastic designed for SLS 3D printing. The incorporation of carbon fibers significantly enhances stiffness, tensile strength, and dimensional stability, while maintaining the chemical resistance, heat deflection properties, and lightweight characteristics of PEKK. Parts printed in PEKK-CF are suitable for functional prototypes, aerospace and automotive components, tooling, and other industrial applications that require superior mechanical performance and high-temperature endurance. The material delivers excellent layer adhesion and low warping in SLS processes, allowing complex geometries to be produced with consistent quality and reliability.

Print with SLS PEKK-CF

Mechanical Properties

Tensile strength85–110 MPa

Tensile modulus6000–8000 MPa

Elongation2–5 %

Flexural strength140–180 MPa

Flexural modulus6000–8000 MPa

Density1.39 g/cm³

Thermal

Heat deflection at 66 PSI160–170 °C

Print Constraints

Maximum build volume

250 × 250 × 320 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.4 mm

Min engraving0.4 mm

Accuracy± 0.2 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

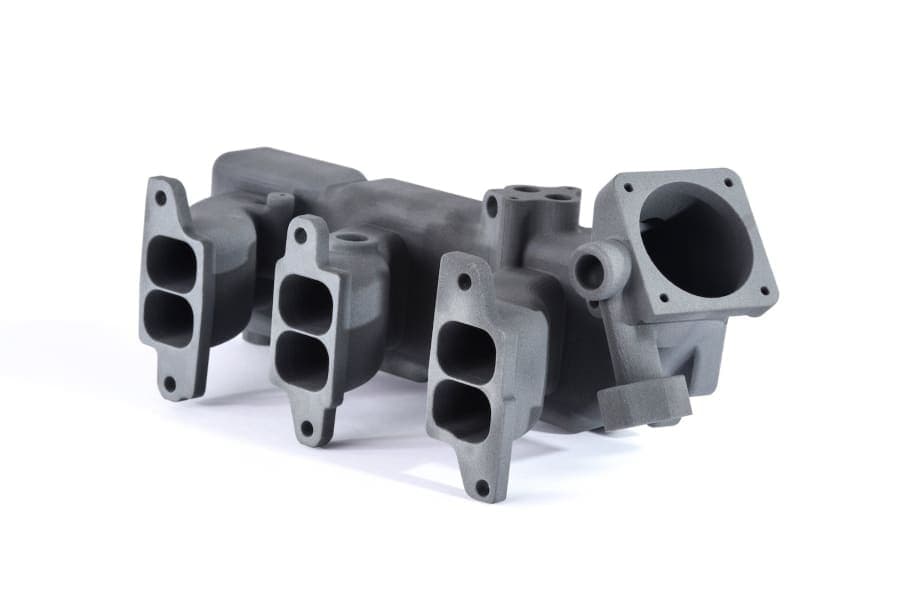

SLS PEKK-CF is a carbon-fiber reinforced PEKK with high strength, stiffness, and heat resistance. In its as-sintered finish, it has a matte dark gray surface with a slightly rough, grainy texture.
