SLS Glass-Filled Nylon PA6

Nylons

Wear resistantDurableFunctionalImpact resistant

SLS Glass-Filled Reinforced Nylon 6 (PA6 GF40) is a high-performance thermoplastic designed for applications that demand superior strength, rigidity, and thermal stability. Containing approximately 40% glass fiber, the material exhibits excellent stiffness and dimensional stability, even under high mechanical loads or elevated temperatures. Printed parts feature a matte finish with a slightly textured surface characteristic of SLS processing. The glass fiber reinforcement significantly reduces warping and shrinkage, ensuring tight tolerances and consistent accuracy. With high heat deflection, chemical resistance, and impact strength, SLS PA6 GF40 is well-suited for industrial applications such as automotive housings, structural brackets, and components exposed to mechanical or thermal stress.

Print with SLS Glass-Filled Nylon PA6

Mechanical Properties

Tensile strength73–88 MPa

Tensile modulus2500–6500 MPa

Elongation1.6–1.9 %

Flexural strength110–130 MPa

Flexural modulus2500–6200 MPa

Density1.41 g/cm³

Print Constraints

Maximum build volume

395 × 395 × 445 mm

Default layer height0.15 mm

Default infill100%

Min embossing0.4 mm

Min engraving0.4 mm

Accuracy± 0.3 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

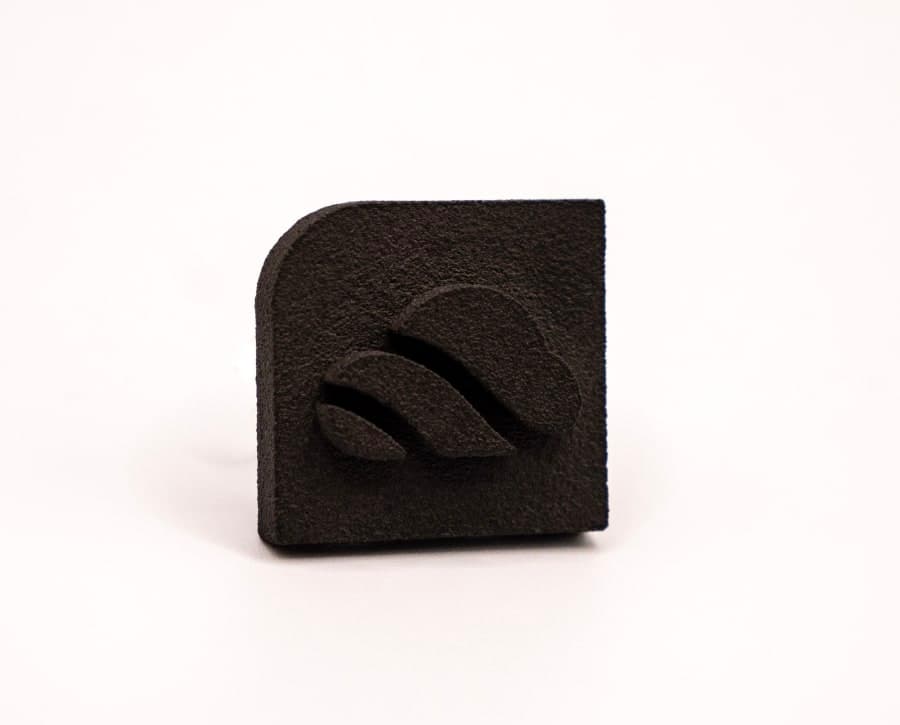

Standard SLS PA6 GF40 parts have a matte dark gray surface with a slightly rough texture. The glass fiber reinforcement provides excellent stiffness, heat resistance, and dimensional stability for durable, high-performance components.
