PLA-ESD

Standard Plastics

Visual

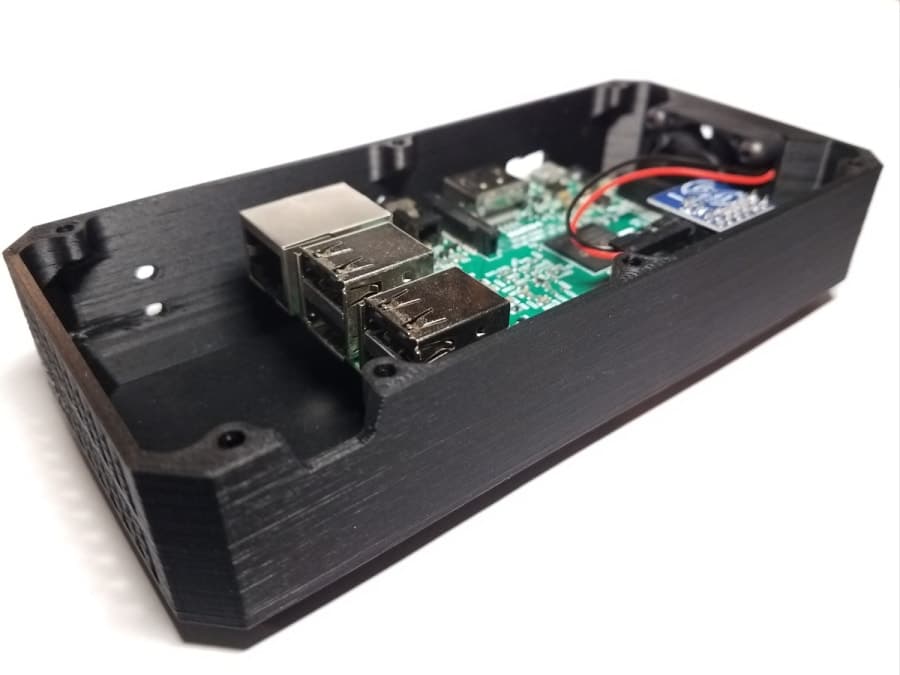

PLA-ESD (electrostatic discharge) as a 3D printing material is used around all electrostatically sensitive components. This includes almost all electrical, electronic and optoelectronic as well as numerous electromechanical components. The PLA-ESD filament guarantees the safe and controlled dissipation of electrostatic charges due to its dissipative (energy-absorbing) properties. Mechanical properties remain similar to those of standard PLA.

Print with PLA-ESD

Mechanical Properties

Tensile strength40–60 MPa

Tensile modulus1810–2560 MPa

Elongation1.9–20 %

Flexural strength50–95 MPa

Flexural modulus2700–2980 MPa

Density1.26 g/cm³

Thermal

Heat deflection at 66 PSI50–60 °C

Heat deflection at 264 PSI50–60 °C

Print Constraints

Maximum build volume

601 × 601 × 601 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.3 mm

Min engraving0.3 mm

Accuracy± 0.3 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered finish.
