PETG CCF

Composites

SmoothStrongImpact resistantDurable

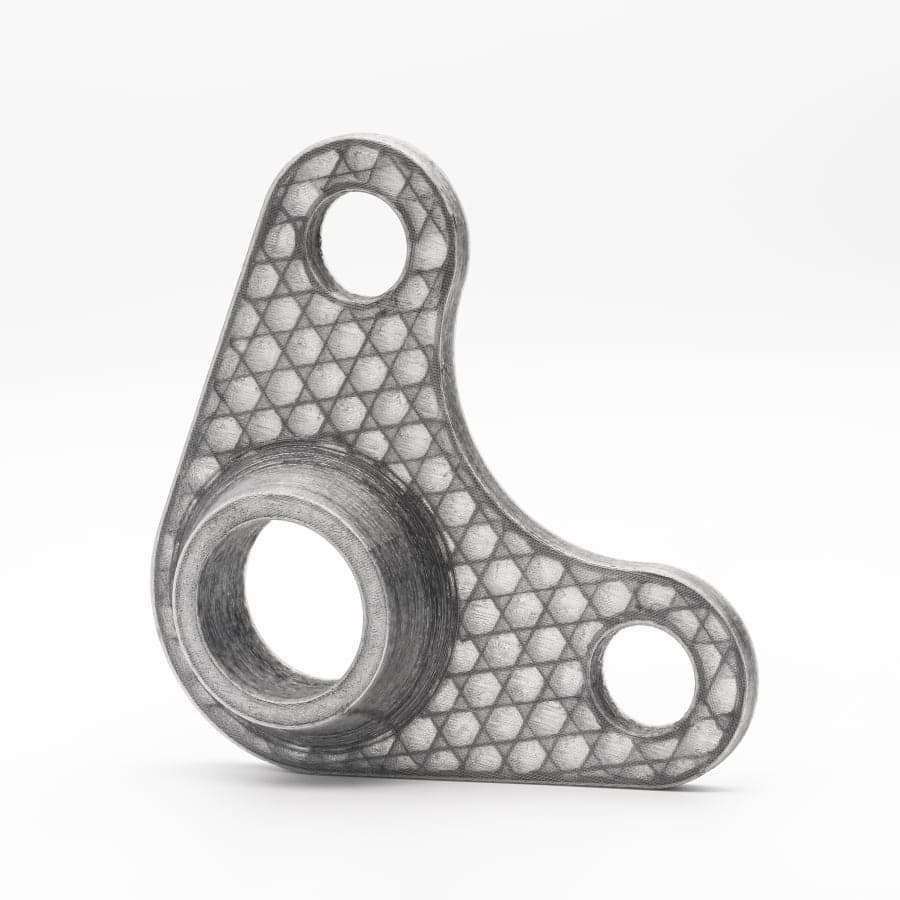

Printed with a new co-extrusion technology, PETG CCF results in a strong, lightweight print. The print can be used in high demanding applications and can replace metals in many cases. Clear PETG is used to print the surface perimeter of the part to give it a smooth translucent texture while PETG reinforced with continuous carbon fiber is printed inside the part as another layer of perimeter and infill. The perimeter layers, infill pattern, and density, can be customized as per the requirements of the end part. A standard print will consist of four plastic perimeter layers followed by two composite perimeter layers and the infill percentage of your choosing (in the next step) with an Isogrid pattern. To customize these settings, feel free to add your requirements in the production note and we'll get back to you.

Print with PETG CCF

Mechanical Properties

Tensile strength40–60 MPa

Tensile modulus3000–4000 MPa

Elongation2–6 %

Flexural strength70–100 MPa

Flexural modulus3000–4000 MPa

Density1.4 g/cm³

Thermal

Heat deflection at 66 PSI80–90 °C

Print Constraints

Default layer height0.2 mm

Min embossing0.4 mm

Min engraving0.4 mm

Accuracy± 1.6 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Translucent Smooth

1 color

The final part has a smooth translucent surface.
