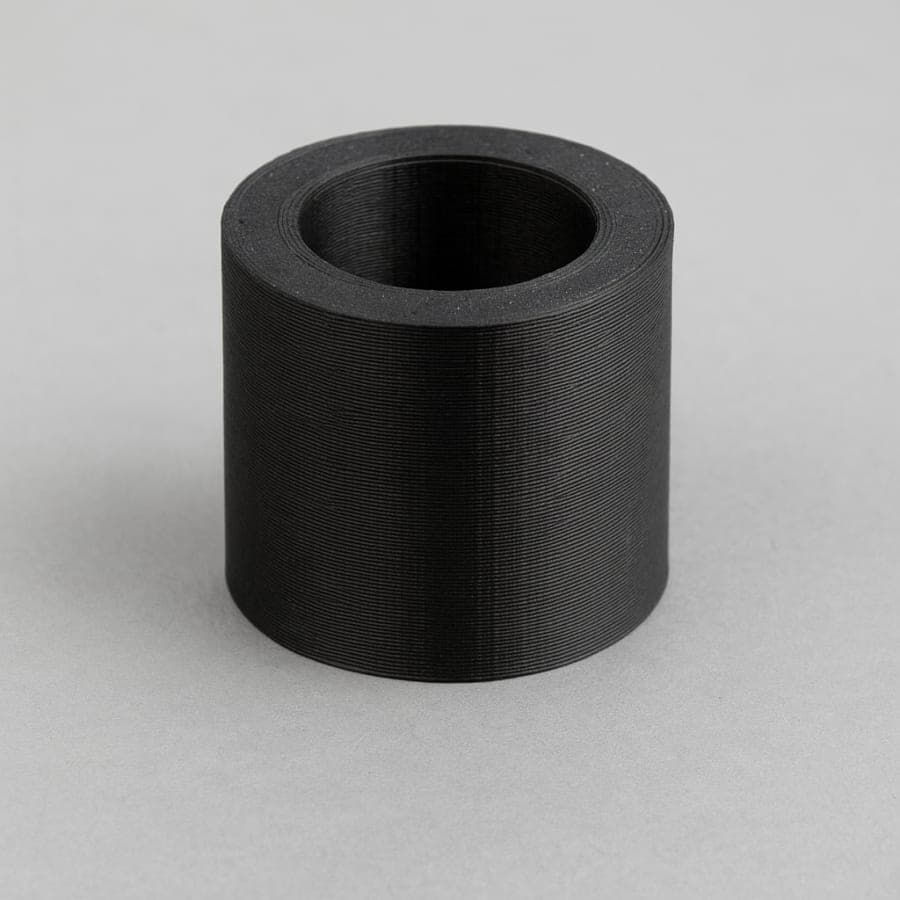

iglidur® I190-PF

Engineering Plastics

FunctionalDurableWear resistantWater resistant

iglidur® I190-PF is a high-performance filament developed by igus® specifically for 3D printing functional parts with high wear resistance. Based on tribologically optimized thermoplastics, it is ideal for producing durable, low-friction components such as bushings, thrust washers, and sliding elements. It requires no lubrication and performs reliably in dry-running applications. The material excels in motion applications thanks to its exceptionally low coefficient of friction and good dimensional stability, making it a preferred choice for industrial automation, robotics, and custom machinery components.

Print with iglidur® I190-PF

Mechanical Properties

Tensile strength60–80 MPa

Tensile modulus2000–3500 MPa

Elongation4–15 %

Density1.38 g/cm³

Print Constraints

Maximum build volume

255 × 212 × 210 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Matte surface with visible layer lines. Functional and uniform, ideal for low-friction applications without post-processing.
