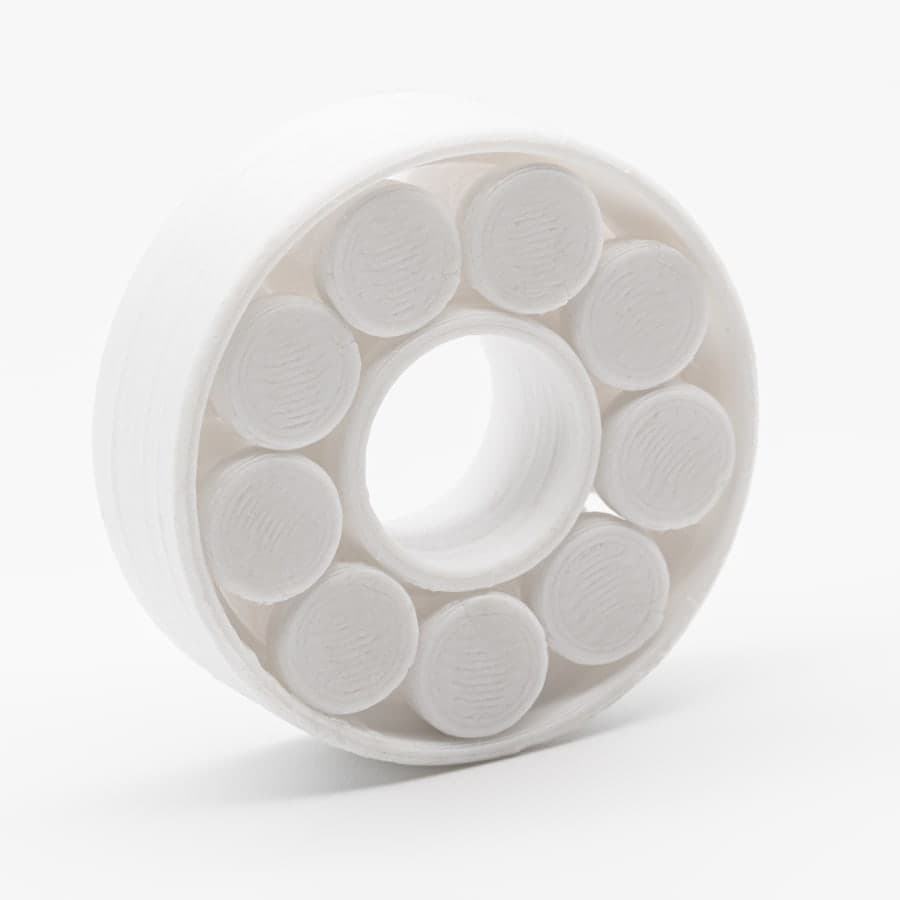

iglidur® I180-PF

Engineering Plastics

Wear resistantDurableHeat resistantWater resistant

iglidur I180-PF has been specifically developed for moving applications and is very well suited for abrasion-resistant parts, such as plain bearings, gears, and drive nuts. The higher wear resistance as well as a higher temperature resistance (100 °C long-term) extend the field of application, especially for more dynamic and wear-resistant applications.

Print with iglidur® I180-PF

Mechanical Properties

Tensile strength44–50 MPa

Tensile modulus1000–1200 MPa

Elongation5–10 %

Flexural strength33–44 MPa

Flexural modulus1000–1200 MPa

Density1.21 g/cm³

Print Constraints

Maximum build volume

601 × 601 × 601 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.2 mm

Warping riskOver_140_mm

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

2 colors

Standard layered finish in white.
