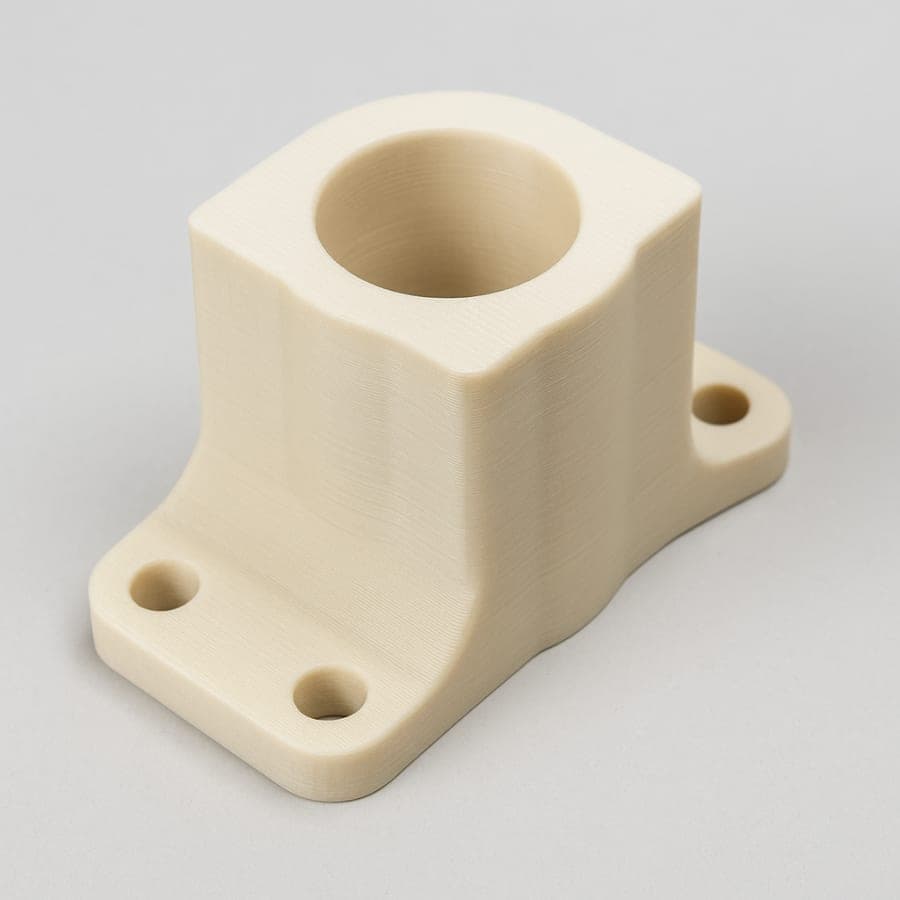

HP® VictrexAM™ 200 PAEK

Engineering Plastics

FunctionalDurableStrong

VictrexAM™ 200 PAEK is suitable for higher-temperature applications and shows a good level of resistance to chemicals. The material gives the user great design freedom, enabling the printing of durable end parts with complex geometry. Wear, corrosion, and fatigue resistances can be given as other reasons why this material is preferable in diverse industrial applications.

Print with HP® VictrexAM™ 200 PAEK

Mechanical Properties

Tensile strength95 MPa

Tensile modulus3300 MPa

Elongation15 %

Flexural modulus2200–3300 MPa

Density1.29 g/cm³

Print Constraints

Maximum build volume

354 × 354 × 415 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.3 mm

Warping riskLow

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered finish in solid beige.
