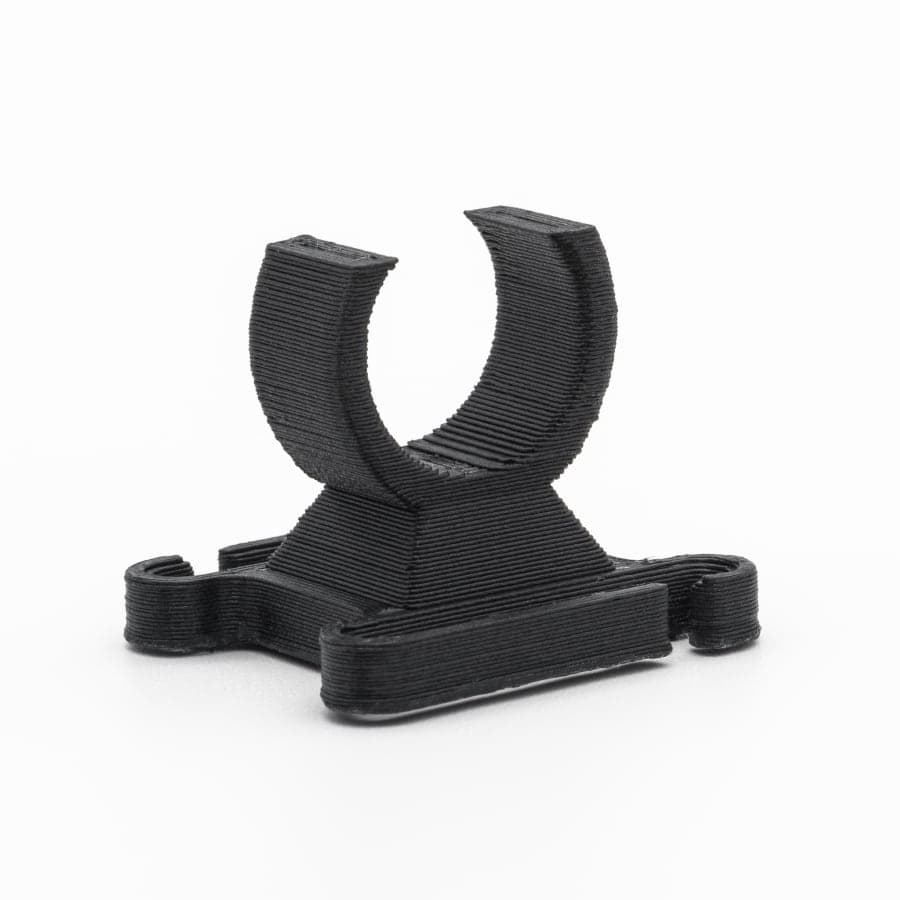

HP® Carbon Fiber PEEK

Composites

StrongDurableFunctionalHeat resistant

One of the most durable polymers for technical use, offering top chemical, tensile, and heat resistance. This filament was created for industrial professionals who need uncompromised quality of end-use parts, to deal with demanding surroundings.

Print with HP® Carbon Fiber PEEK

Mechanical Properties

Tensile strength96–105 MPa

Tensile modulus8000–8200 MPa

Elongation3–6.9 %

Flexural strength136–140 MPa

Flexural modulus3063–8300 MPa

Density1.32 g/cm³

Print Constraints

Maximum build volume

365 × 365 × 415 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.8 mm

Min engraving0.8 mm

Accuracy± 0.4 mm

Warping riskOver_140_mm

Interlocking partsNot supported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered finish.
