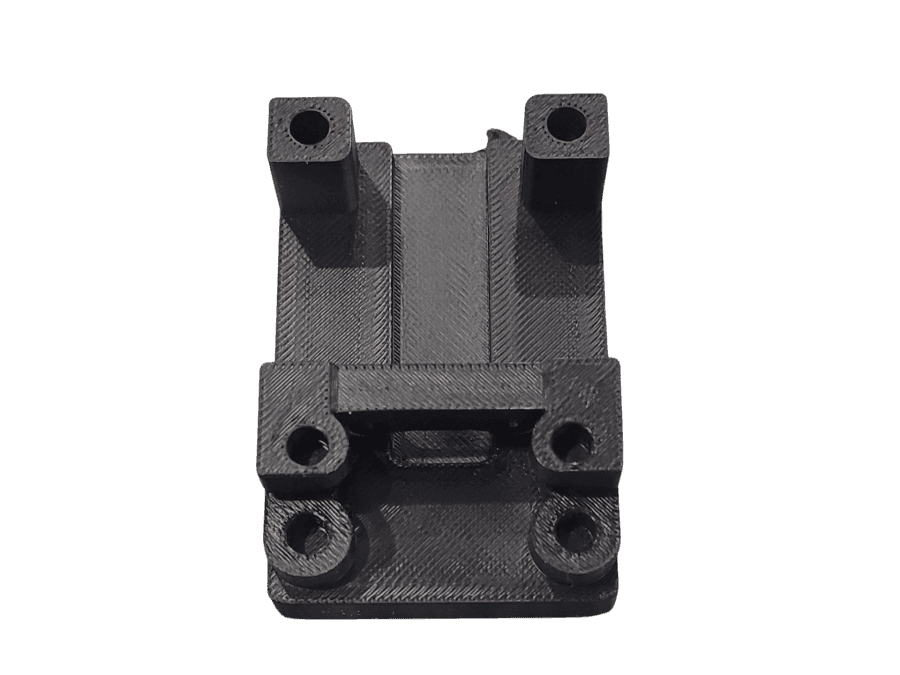

HP® ABS

Standard Plastics

FunctionalStrong

ABS (acrylonitrile butadiene styrene) offers exceptional strength, durability, impact resistance and ease of processing after printing. It is a thermoplastic polymer that allows for flexible use in a variety of projects, from prototyping to manufacturing functional parts.

Print with HP® ABS

Mechanical Properties

Tensile strength32–45 MPa

Tensile modulus1618–2030 MPa

Elongation4.8–20 %

Flexural strength60–76 MPa

Flexural modulus1800–2070 MPa

Density1.04 g/cm³

Thermal

Heat deflection at 66 PSI81–95 °C

Heat deflection at 264 PSI80–95 °C

Print Constraints

Maximum build volume

365 × 365 × 415 mm

Default layer height0.2 mm

Default infill20%

Min embossing2.5 mm

Min engraving1 mm

Accuracy± 0.3 mm

Warping riskModerate

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

2 colors

Standard layered finish in various colors.
