High-Detail 316L Steel

Steels

Chemical resistantStrongHeat resistantHigh detail

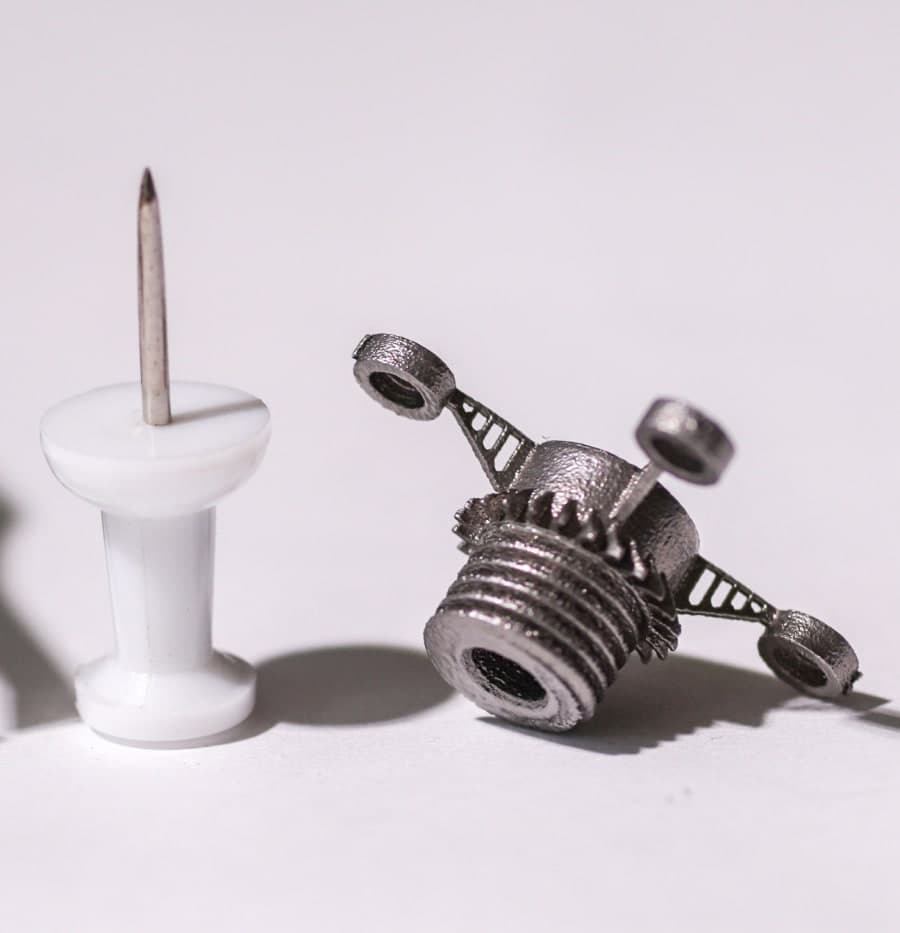

High-Detail 316L Stainless Steel is a premium 3D printing alloy characterized by its superior detail resolution. Coupled with its inherent corrosion resistance and mechanical integrity, this material is optimally suited for precision-driven, high-performance applications.

Print with High-Detail 316L Steel

Mechanical Properties

Tensile strength580–700 MPa

Tensile modulus180000–220000 MPa

Elongation25–55 %

Density7.9 g/cm³

Print Constraints

Maximum build volume

400 × 400 × 400 mm

Default layer height0.04 mm

Default infill100%

Min embossing0.8 mm

Min engraving0.8 mm

Accuracy± 0.2 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Satin Glossy

1 color

Glassblasted glossy gray surface.

Sandblasted Matte

1 color

Sandblasted matte gray surface.

Polished Glossy

1 color

Polished smooth glossy gray surface.
