High-Detail 17-4 PH Stainless Steel

Steels

Impact resistantStrongHigh detailCorrosion resistant

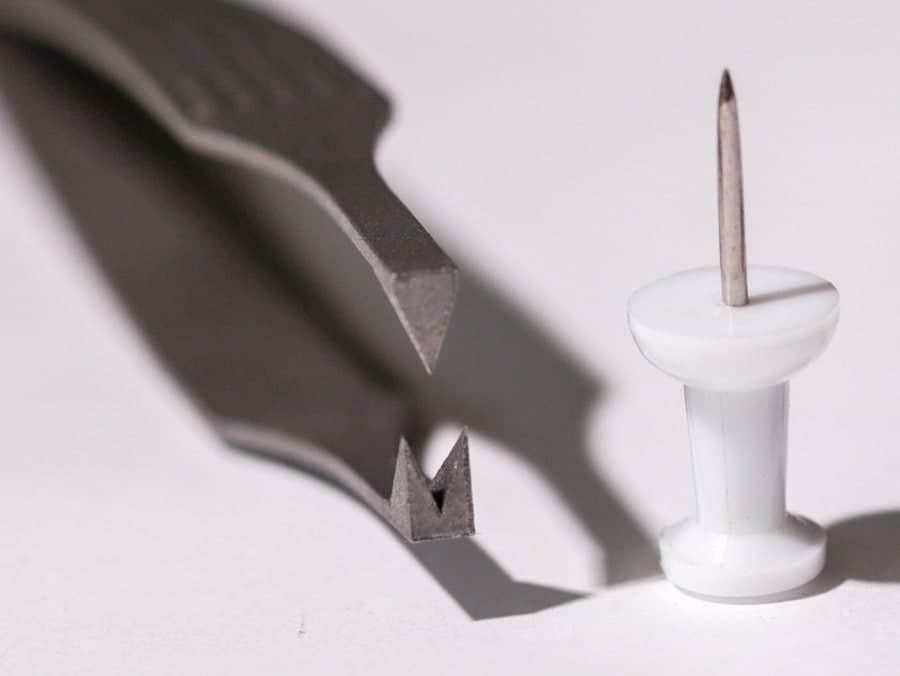

High-Detail 17-4 PH Stainless Steel is a premium 3D printing material known for its exceptional strength and corrosion resistance. The material was created for applications that demand intricate precision, allowing for the creation of exceptionally detailed designs and features. High-detail 17-4 PH Stainless Steel is ideal for high-performance parts and detailed designs that demand aesthetic precision and durability.

Print with High-Detail 17-4 PH Stainless Steel

Mechanical Properties

Tensile strength900–1300 MPa

Tensile modulus110000–200000 MPa

Elongation4–15 %

Density8 g/cm³

Print Constraints

Maximum build volume

250 × 250 × 300 mm

Default layer height0.04 mm

Default infill100%

Min embossing0.8 mm

Min engraving0.8 mm

Accuracy± 0.2 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Sandblasted Matte

1 color

Sandblasted finish resulting in a matte surface finish.

Satin Glossy

1 color

Glassblasted glossy gray surface.
