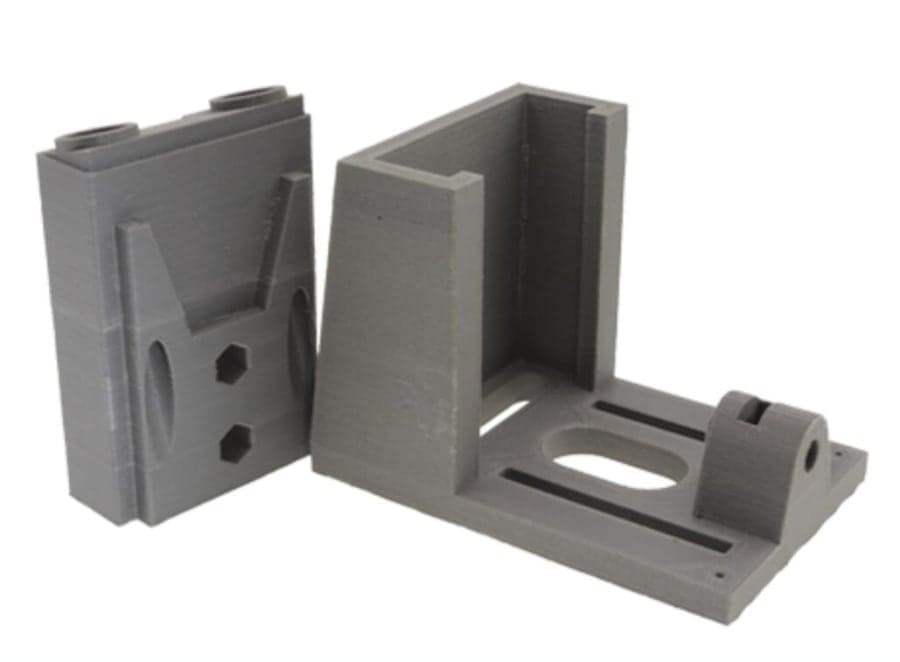

Glass Fiber FDM Nylon

Nylons

Wear resistantImpact resistantStrongFunctional

Nylon reinforced with short glass fibers offers increased rigidity and impact resistance if compared to plain Nylon. In FDM, a strand of material is deposited in layers to create a 3D printed object.

Print with Glass Fiber FDM Nylon

Mechanical Properties

Tensile strength50–70 MPa

Tensile modulus2000–3100 MPa

Elongation5–20 %

Flexural strength100–130 MPa

Flexural modulus3000–3500 MPa

Density1.09 g/cm³

Thermal

Heat deflection at 66 PSI120–160 °C

Print Constraints

Maximum build volume

1120 × 720 × 620 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.3 mm

Warping riskHigh

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

12 colors

Standard layered finish.

Sanded

12 colors

Smooth sanded finish.
