Figure 4™ HI TEMP 300-AMB

Engineering Plastics

Heat resistantDurableStrongFunctional

Figure 4™ HI TEMP 300-AMB is an advanced photopolymer resin engineered for high-temperature applications. With a heat deflection temperature (HDT) of up to 300 °C, it provides exceptional thermal resistance, making it ideal for testing and production of components exposed to extreme heat. The material also delivers high stiffness, dimensional stability, and excellent detail reproduction. Its natural amber translucency allows visual inspection of internal features, adding versatility for functional prototyping, automotive, aerospace, and industrial applications.

Print with Figure 4™ HI TEMP 300-AMB

Mechanical Properties

Tensile strength68–81 MPa

Tensile modulus3800–4200 MPa

Elongation1.9–2.6 %

Flexural strength85–140 MPa

Flexural modulus4000–4260 MPa

Density1.3 g/cm³

Print Constraints

Maximum build volume

330 × 185 × 375 mm

Default layer height0.1 mm

Default infill100%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.1 mm

Warping riskLow

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

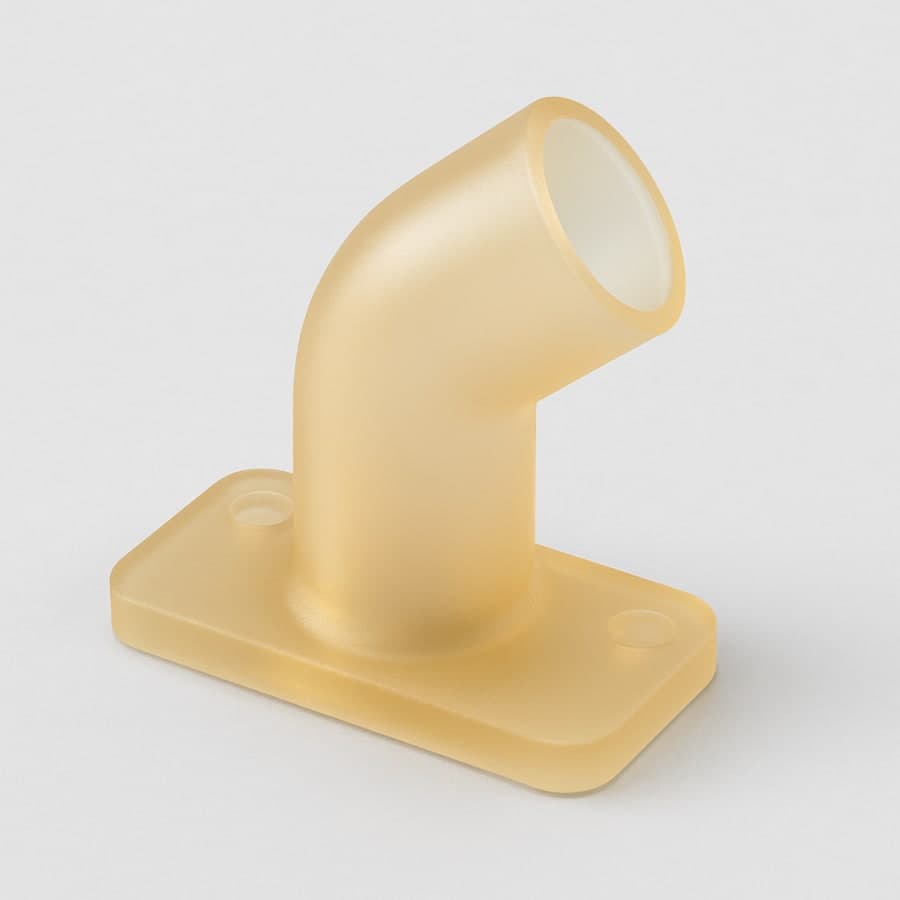

In its standard finish, Figure 4™ HI TEMP 300-AMB has a translucent amber color, smooth surface, and high accuracy, offering excellent stiffness and thermal resistance without additional finishing.
