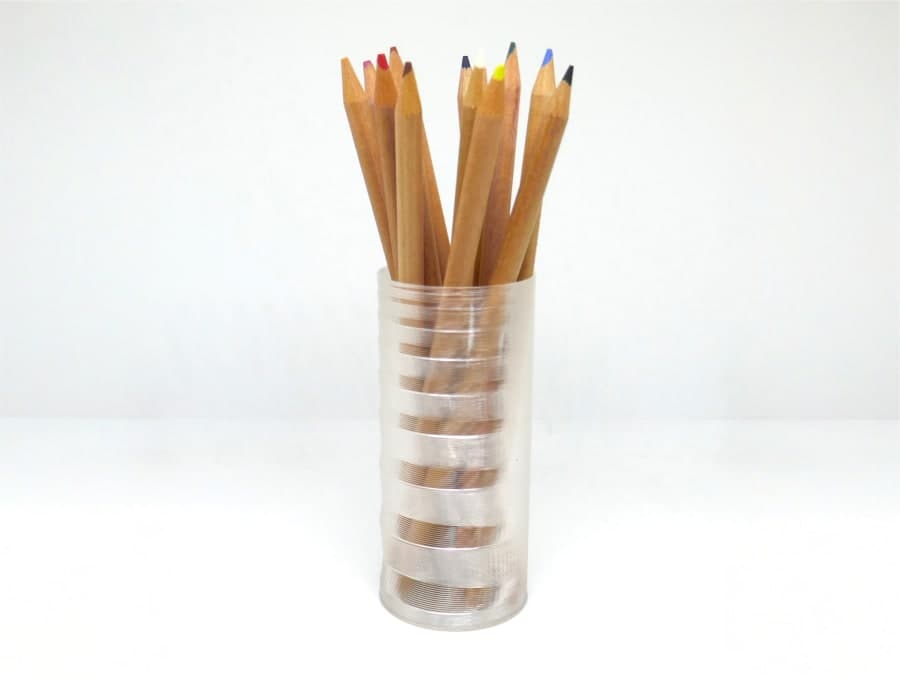

FDM PMMA

Standard Plastics

VisualStrongUV resistantTransparent

Polymethyl Methacrylate (PMMA), commonly known as acrylic or plexiglass, offers good optical clarity, which makes it ideal for applications where visual aesthetics and light transmission are paramount, such as display cases, signage, or architectural models. In addition to its optical properties, PMMA exhibits excellent mechanical characteristics. It possesses high tensile strength and impact resistance, making it stronger and more durable than materials like PLA or ABS. This strength enables PMMA to withstand demanding conditions and endure impacts without compromising its integrity. One of the notable advantages of PMMA is its resistance to chemicals. It demonstrates good resistance to various substances, including acids and alkalis. PMMA also excels in its resistance to ultraviolet (UV) light degradation. It maintains its clarity and mechanical properties when exposed to sunlight or other UV sources, making it a preferred choice for outdoor applications.

Print with FDM PMMA

Mechanical Properties

Tensile strength35–80 MPa

Tensile modulus1800–3000 MPa

Elongation5–50 %

Flexural strength90–130 MPa

Flexural modulus2500–3500 MPa

Density1.17 g/cm³

Thermal

Heat deflection at 66 PSI70–89 °C

Heat deflection at 264 PSI65–85 °C

Print Constraints

Maximum build volume

600 × 600 × 600 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.5 mm

Min engraving0.5 mm

Accuracy± 0.3 mm

Warping riskHigh

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

4 colors

Standard layered finish.

Sanded

4 colors

Smooth sanded finish.
