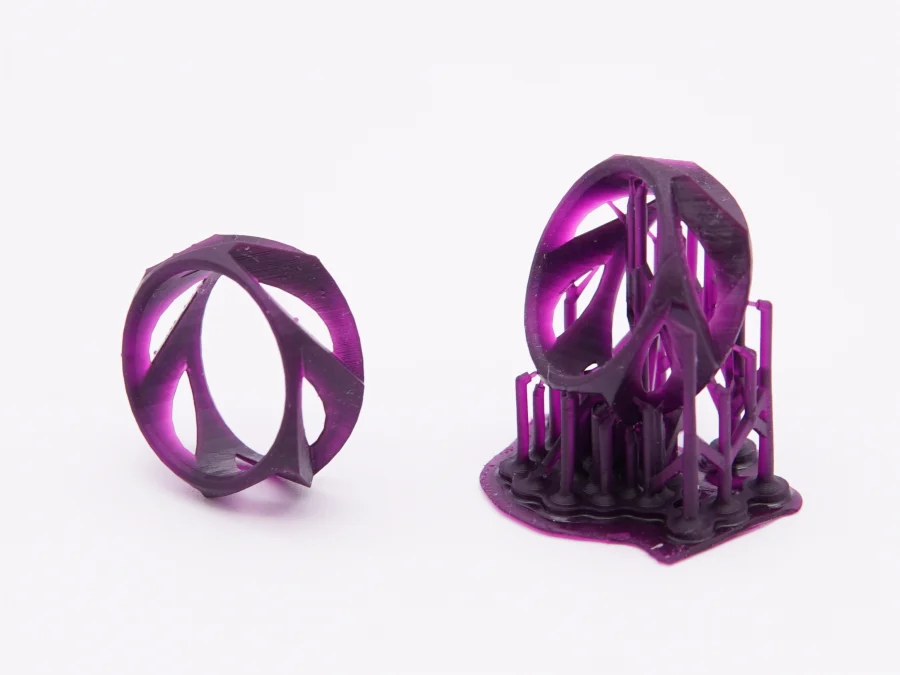

Castable Resin

Castable resin is a material that can be 3D printed and then used in lost-wax process. It is often used for casting precious metals like gold and silver.

Print with Castable Resin

Mechanical Properties

Tensile strength12 MPa

Tensile modulus220 MPa

Elongation13 %

Flexural strength20–40 MPa

Flexural modulus400–600 MPa

Density1.8 g/cm³

Thermal

Heat deflection at 66 PSI

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

8 colors

Raw castable resin.

All materials

Print Constraints

Maximum build volume

800 × 800 × 550 mm

Default layer height0.05 mm

Default infill100%

Min embossing0.2 mm

Min engraving0.2 mm

Accuracy± 0.4 mm

Warping riskModerate

Interlocking partsSupported
