Carbon Fiber Polycarbonate

Composites

Wear resistantStrongUV resistantChemical resistant

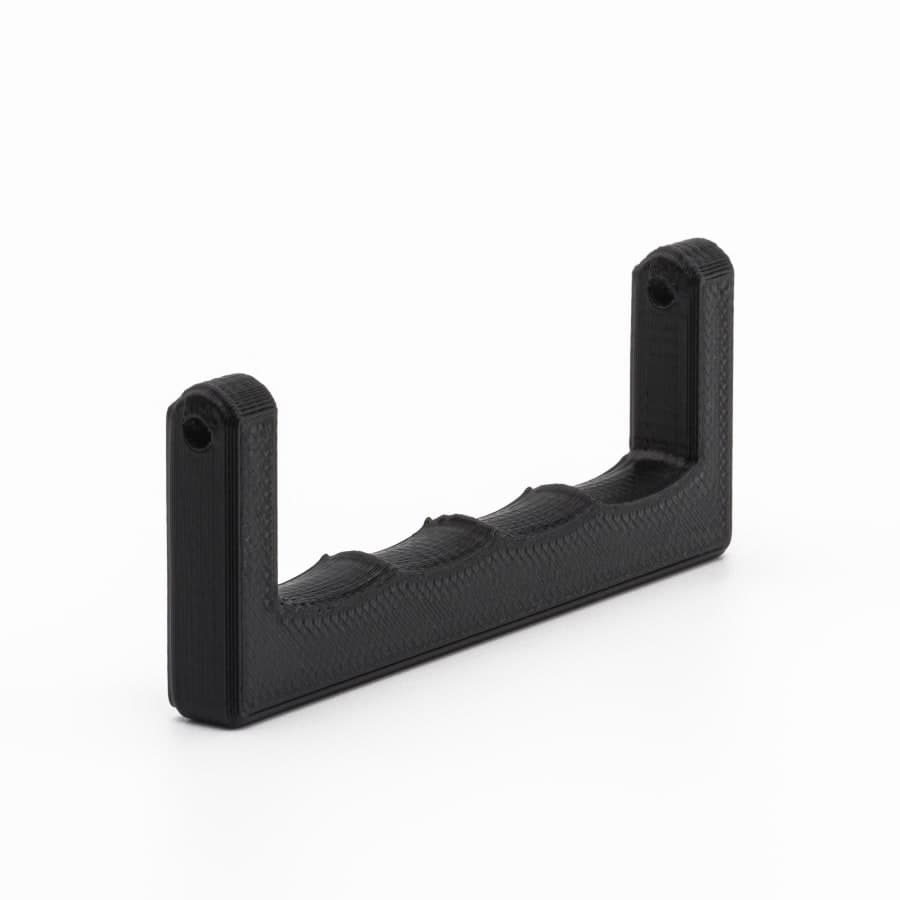

PC CF has a good resistance to UV light and common chemicals while being slightly lighter than standard PC. It is ideal for printing mechanical parts and heat-stressed components, such as gears and machine parts that require heat resistance over 100 °C.

Print with Carbon Fiber Polycarbonate

Mechanical Properties

Tensile strength70–87 MPa

Tensile modulus6200–9500 MPa

Elongation2–10 %

Flexural strength85–92 MPa

Flexural modulus5890–9000 MPa

Density1.36 g/cm³

Thermal

Heat deflection at 66 PSI113–150 °C

Print Constraints

Maximum build volume

1120 × 720 × 620 mm

Default layer height0.2 mm

Default infill20%

Min embossing0.4 mm

Min engraving0.4 mm

Accuracy± 0.3 mm

Warping riskOver_140_mm

Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

1 color

Standard layered surface finish.

Sanded

1 color

Smooth sanded finish in various colors.
