ASA

ASA

Engineering Plastics
UV resistantImpact resistantWater resistant

ASA (acrylic styrene acrylonitrile) is great for outdoor-use production parts that benefit from the strength and UV resistance of this material. From electrical housings and brackets to sporting goods and automotive prototypes, ASA’s ease of use also makes it a great choice for iterative design and offers superior aesthetics and consistently high-quality parts. The material's UV resistance makes it well-suited for end-use parts for outdoor commercial and infrastructure use and the material is often used throughout prototyping phases.

Print with ASA
Mechanical Properties
Tensile strength40–47 MPa
Tensile modulus1700–2080 MPa
Elongation6–35 %
Flexural strength62–79 MPa
Flexural modulus1900–2210 MPa
Density1.1 g/cm³
Thermal
Heat deflection at 66 PSI88–96 °C
Heat deflection at 264 PSI80–90 °C
Print Constraints

Maximum build volume

1000 × 1000 × 1000 mm

Default layer height0.2 mm
Default infill20%
Min embossing0.6 mm
Min engraving0.6 mm
Accuracy± 0.3 mm
Warping riskN/A
Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

Standard

48 colors

Standard layered finish in various colors.

Sanded

Sanded

48 colors

Smooth sanded finish in various colors.

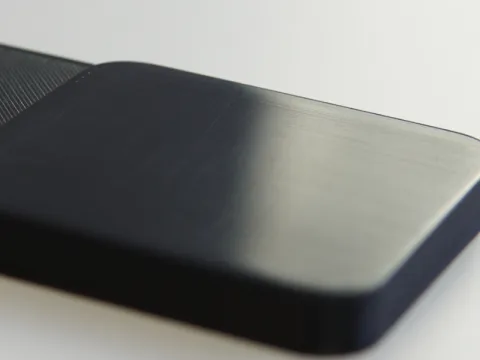

Polished

Polished

30 colors

Glossy polished finish in various colors.
