Print
Material
Aluminum (AlSi10Mg)

Aluminum (AlSi10Mg)

Alloys
StrongHeat resistantFunctional

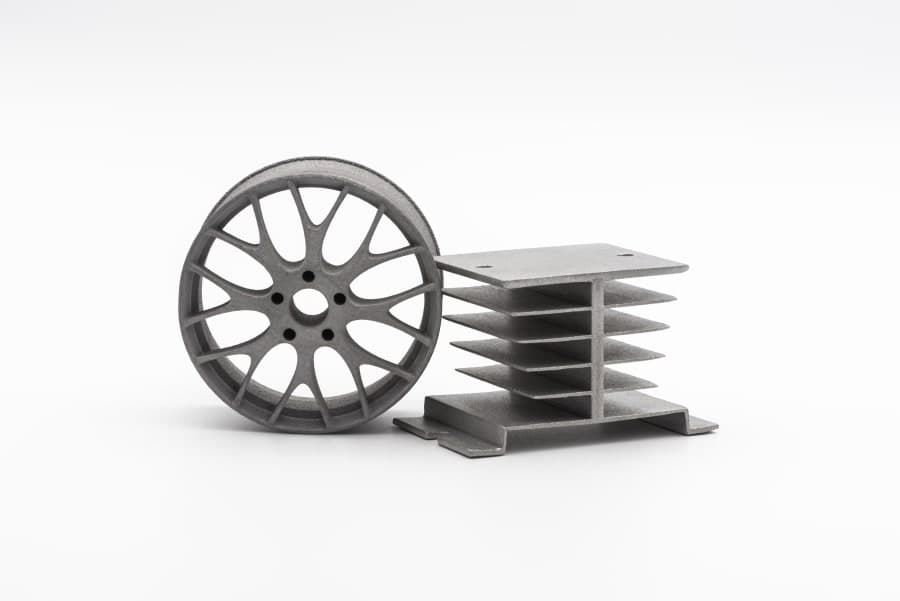

Aluminum alloy (AlSi10Mg) is a strong, low-weight material with good thermal properties. It is printed by sintering aluminum powder together with a laser to produce metal parts that are equally as good as machined models. 3D printed aluminum does not look like traditional shiny milled aluminum. Instead, it has a matte gray finish with a slightly rougher and less defined surface. The subtle sparkle you will notice is caused by the presence of silicon in the alloy.

Print with Aluminum (AlSi10Mg)
Mechanical Properties
Tensile strength330–520 MPa
Tensile modulus70000–80000 MPa
Elongation4–14 %
Flexural modulus70000–80000 MPa
Density2.67 g/cm³
Thermal
Heat deflection at 66 PSI150–200 °C
Heat deflection at 264 PSI120–160 °C
Print Constraints

Maximum build volume

600 × 600 × 600 mm

Default layer height0.15 mm
Default infill100%
Min embossing0.5 mm
Min engraving0.5 mm
Accuracy± 0.2 mm
Warping riskOver_140_mm
Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Glass Blasted

Glass Blasted

1 color

Aluminum with glassblasted glossy gray surface.

Standard Matte

Standard Matte

1 color

Raw matte aluminum with a rough granular surface finish.

Deburred

Deburred

1 color

Aluminum with a deburred, satin-like surface finish.

Sandblasted

Sandblasted

1 color

Matte Aluminum with a slightly granular surface finish.
