Standard PlasticsImpact resistantFunctional

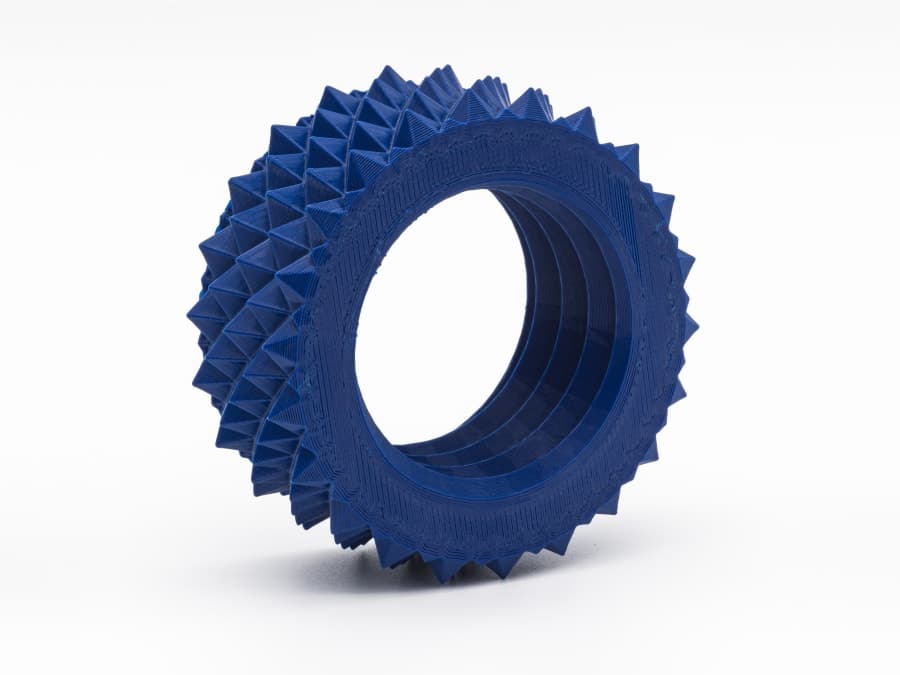

ABS

ABS (acrylonitrile butadiene styrene) is great for functional parts and prototypes with a need for stronger mechanical properties than PLA. ABS matches approximately 80% of the properties of injection-molded products but is rigid and inflexible, with design freedom limited due to the fused deposition modeling (FDM) printing process. The surface of an ABS model is always slightly rough due to the printing process and it can be difficult to post-process, though vapor smoothing can greatly improve its aspect.

Print with ABS

Mechanical Properties

Tensile strength32–45 MPa

Tensile modulus1618–2030 MPa

Elongation4.8–20 %

Flexural strength60–76 MPa

Flexural modulus1800–2070 MPa

Density1.04 g/cm³

Thermal

Heat deflection at 66 PSI

Available finishes

Each finish can be combined with the available colors at checkout.

Standard

60 colors

Standard layered finish in various colors.

Sanded

60 colors

Smooth sanded finish in various colors.

All materials

Print Constraints

Maximum build volume

1000 × 1000 × 1000 mm

Default layer height0.2 mm

Default infill20%

Min embossing2.5 mm

Min engraving1 mm

Accuracy± 0.3 mm

Warping riskModerate

Interlocking partsSupported

ABS

Available finishes

Standard

Sanded

Polished
