Material

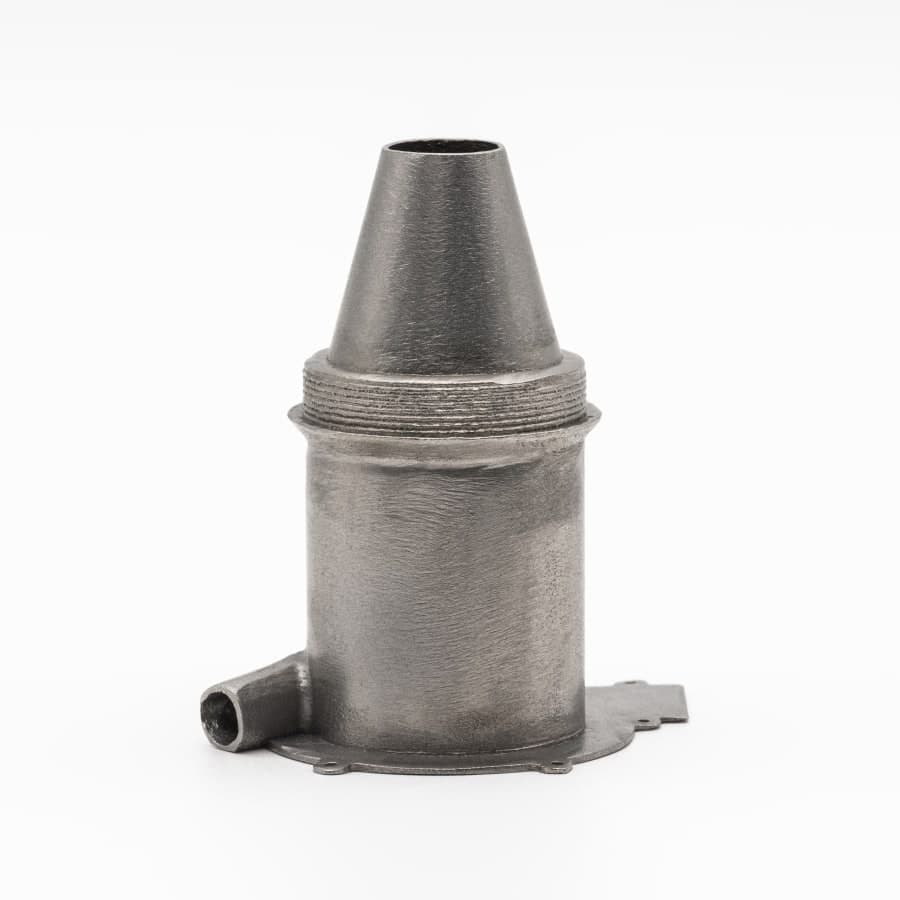

17-4 PH Stainless Steel

17-4 PH Stainless Steel

Steels
Impact resistantStrongFunctionalWater resistant

17-4 PH SS is a versatile material widely used in the aerospace, chemical, petrochemical, and general metalworking industries. The good mechanical characteristic values of stainless steel make it suitable for heavy-strain applications. Thanks to its high wear resistance, it is commonly used in valves, shafts, steam turbine parts, and other high-strength components which also have certain corrosion resistance requirements.

Print with 17-4 PH Stainless Steel
Mechanical Properties
Tensile strength900–1340 MPa
Tensile modulus190000–210000 MPa
Elongation8–20 %
Flexural strength1200–1450 MPa
Flexural modulus190000–210000 MPa
Density8 g/cm³
Print Constraints

Maximum build volume

600 × 600 × 600 mm

Default layer height0.05 mm
Default infill100%
Min embossing0.5 mm
Min engraving0.5 mm
Accuracy± 0.2 mm
Warping riskLow
Interlocking partsSupported

Available finishes

Each finish can be combined with the available colors at checkout.

Sandblasted Matte

Sandblasted Matte

1 color

Sandblasted finish resulting in a matte surface finish.

Satin Glossy

Satin Glossy

1 color

Glassblasted glossy gray surface.

Standard

Standard

0 colors

Standard parts produced by metal 3D printing feature a matte metallic surface with fine powder texture. The material offers high strength, good corrosion resistance, and excellent dimensional accuracy for functional and structural applications.
